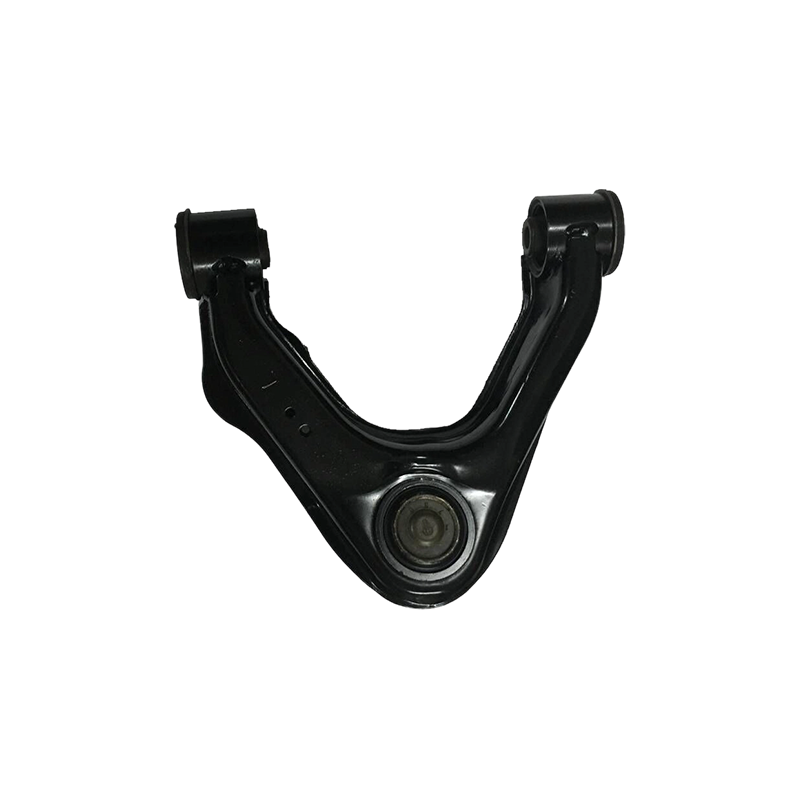

54525-2S485 54524-2S485 Nissan Pick Up Upper Control Arm

This product corresponds to part numbers 54525-2S485 (right) and 54524-2S485 (left), forming the front upper control arm assembly for Nissan Pick Up models. The part is manufactured from SPHC steel through a stamping process, with the surface finished by E-coating. Positioned at the upper section of the front suspension, the control arm connects the vehicle body/subframe to the steering knuckle, guiding wheel alignment and suspension movement. The arm body includes bushing mounting holes and a ball joint connection point, with dimensions matched to original equipment specifications for direct fitment with the steering knuckle, subframe, and shock absorber system. The product is intended for suspension repair and replacement on applicable Nissan Pick Up models within the automotive aftermarket.

Product Description Contact Us
Size Specification:

Dimensions are manufactured according to the arm length, mounting hole diameter, and ball joint taper of original part numbers 54525-2S485 and 54524-2S485. The left and right parts correspond respectively to the vehicle's left and right installation positions, with hole spacing and ball joint angle produced to match original suspension geometry.

Material Characteristics:

54525-2S485 Front upper control arm (Right) SPHC steel E-coating
54524-2S485 Front upper control arm (Left) SPHC steel E-coating
Left/right part number reference and base specifications

Surface Treatment and Color:

The surface is finished using an E-coating process, which reaches weld seams, hole interiors, and corner sections of the steel structure to reduce surface exposure to moisture and corrosion. The standard E-coating color is a matte black finish, consistent with common electrophoretic coating output.

Structural Characteristics:

The product is a front upper control arm assembly, consisting of the main arm body, an inner bushing mounting hole for connection to the subframe or body, and an outer ball joint mounting position for connection to the steering knuckle. The arm geometry is designed around the suspension's range of motion, maintaining wheel alignment angles within specification during compression and rebound.

Installation and Adaptability:

Part numbers 54525-2S485 and 54524-2S485 correspond to the right and left front upper control arm positions respectively. Mounting hole locations and ball joint specifications match original equipment components, allowing direct replacement of a worn or damaged upper control arm assembly. Installation should be carried out with matching bushings, ball joint pins, and fasteners consistent with original specifications.

Application:

Front suspension repair and component replacement for Nissan Pick Up models
Automotive aftermarket parts supply
Suspension assembly disassembly, maintenance, and replacement at repair shops

Product Advantages and Features:

SPHC steel provides the strength and ductility needed for the stamping process
E-coating extends to weld seams and hole interiors across the arm body
Dimensions are manufactured against original part numbers 54525-2S485 and 54524-2S485, keeping mounting holes and ball joint specifications consistent
Left and right part numbers are clearly distinguished, simplifying procurement for both installation positions

Why Choose Us:

(1) Realize Win-Win result and long time coopertation
(2) High Quality & Best Price
(3) Strict Testing Process & Quality Assurance

Product Parameters:

OEM:
54525-2S485  54524-2S485

Car Model:
Nissan Pick Up 1992-1998 upper control arm
